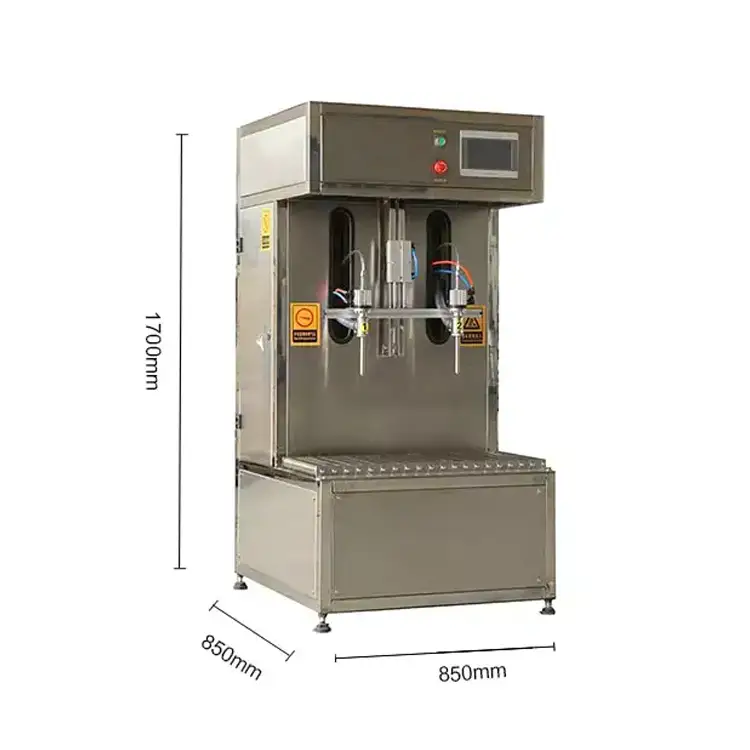

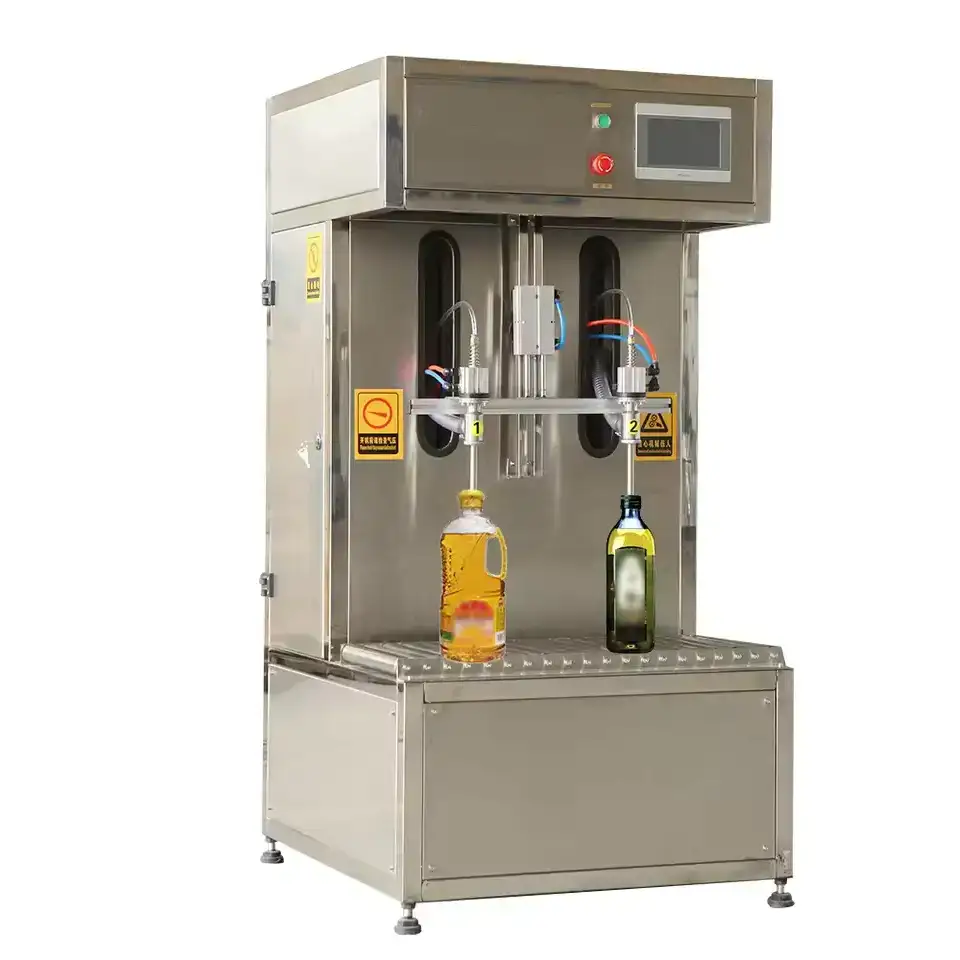

Semi-automatic 2-head gear pump PLC flow meter piston filling machine

Perkenalan

The Semi-automatic flow meter gear pump filling machine is a versatile solution designed for liquid filling applications across industries such as food, edible oil, lubricants, chemicals, and pharmaceuticals. Engineered with a PLC control system, precision gear pumps, and a reliable flow meter, this machine combines automation, accuracy, and flexibility. Its adaptable design allows filling from 1L to 20L containers, making it a practical investment for both small and medium-scale production lines.

• Robust Stainless Steel Construction:
  The entire frame is manufactured from high-grade stainless steel square tubing, ensuring durability and strong resistance to corrosion. This construction not only guarantees long-term reliability but also simplifies cleaning and sanitation, meeting strict hygiene standards in food and chemical industries.

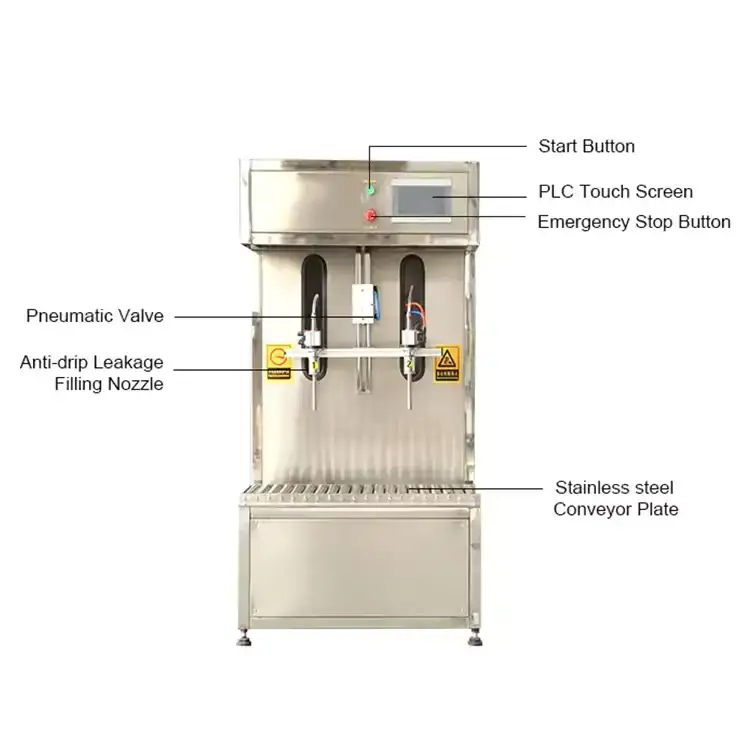

• Advanced PLC Control System:
  Unlike traditional mechanical adjustments, the filling volume on this machine is set electronically via an intuitive touchscreen interface. The central PLC processor controls all parameters, allowing operators to easily switch between filling volumes, flow speeds, and container sizes. This not only improves production efficiency but also minimizes operator workload.
• Precision Gear Pump Technology:
  At the heart of the system lies a 0.2-grade alloy gear pump, engineered for self-priming and delivering high filling accuracy without the need for elevated storage tanks. This innovation reduces installation costs and eliminates potential safety risks. Combined with the flow meter, it ensures consistent dosage and smooth operation with minimal waste.
• Anti-drip Filling Valves:
  The machine is equipped with customizable filling nozzles (umbrella valve or column valve), manufactured to industrial precision. Each nozzle incorporates anti-drip and vacuum suction features, ensuring no leakage, clean container filling, and reduced product loss.

Flexible Configurations for Different Capacities.

To match different production requirements, this filling machine comes in three models:

• 2-head version – Ideal for lower output and small-scale operations.
• 4-head version – Balanced for mid-scale production lines.
• 6-head version – High-speed option for larger batch operations.

This modular design ensures that customers can select the most suitable machine according to their filling volume and output capacity.The machine features a stainless-steel roller conveyor, reducing labor intensity while keeping maintenance costs low. The integrated variable frequency drive (VFD) allows precise control of pump speed, enabling adjustable filling speeds for different liquid viscosities.

Applications.

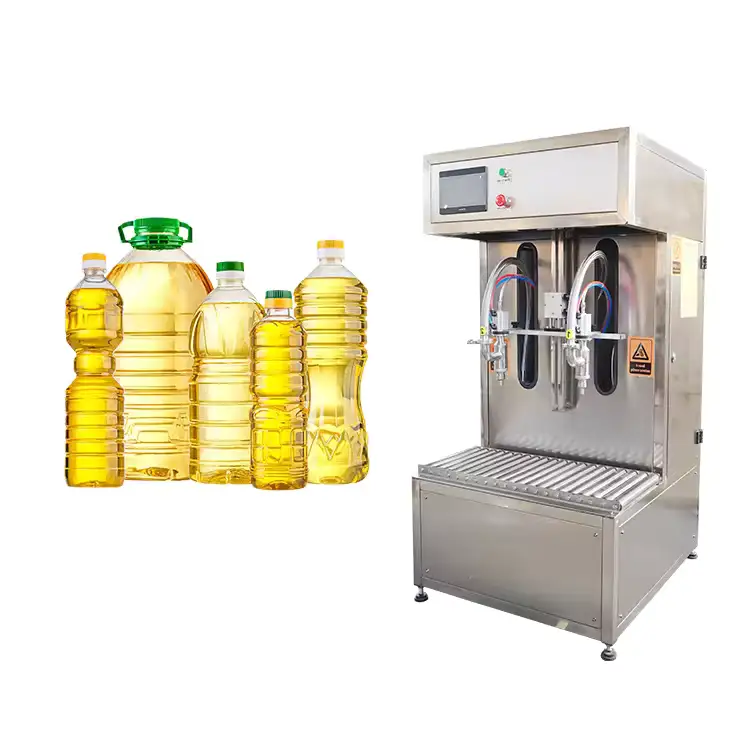

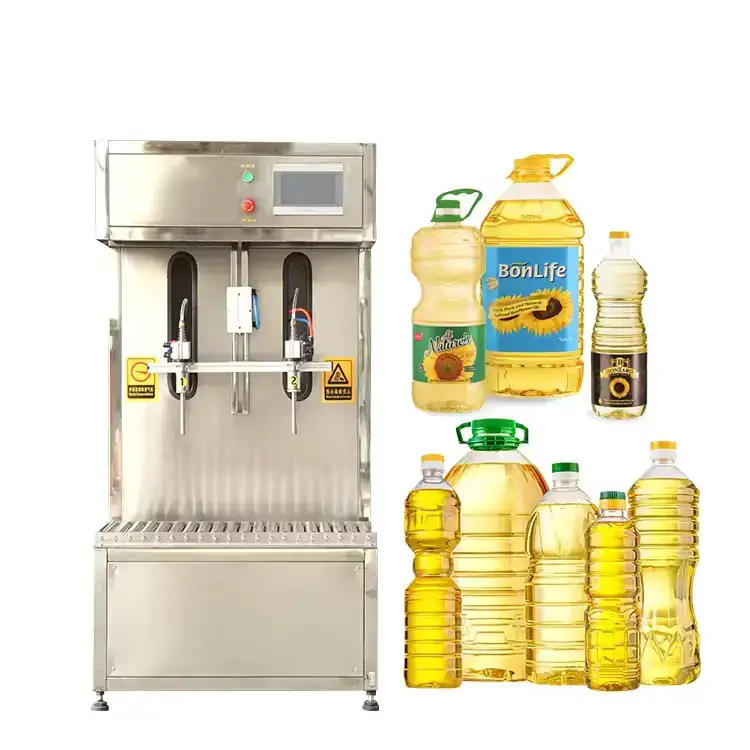

• Edible oils (vegetable oil, sunflower oil, peanut oil, etc.)
• Lubricants and industrial oils
• Chemical solutions and solvents
• Liquid detergents and cleaning agents

The Semi-automatic 2/4/6-head gear pump flow meter filling machine is a reliable, accurate, and cost-efficient solution for a wide range of liquid filling operations. With its stainless steel body, advanced PLC controls, and customizable filling capacity, it provides unmatched flexibility and long-term value for growing businesses.

*The above parameters are for reference only. Due to continuous machine upgrades, actual specifications may differ. Please understand.
