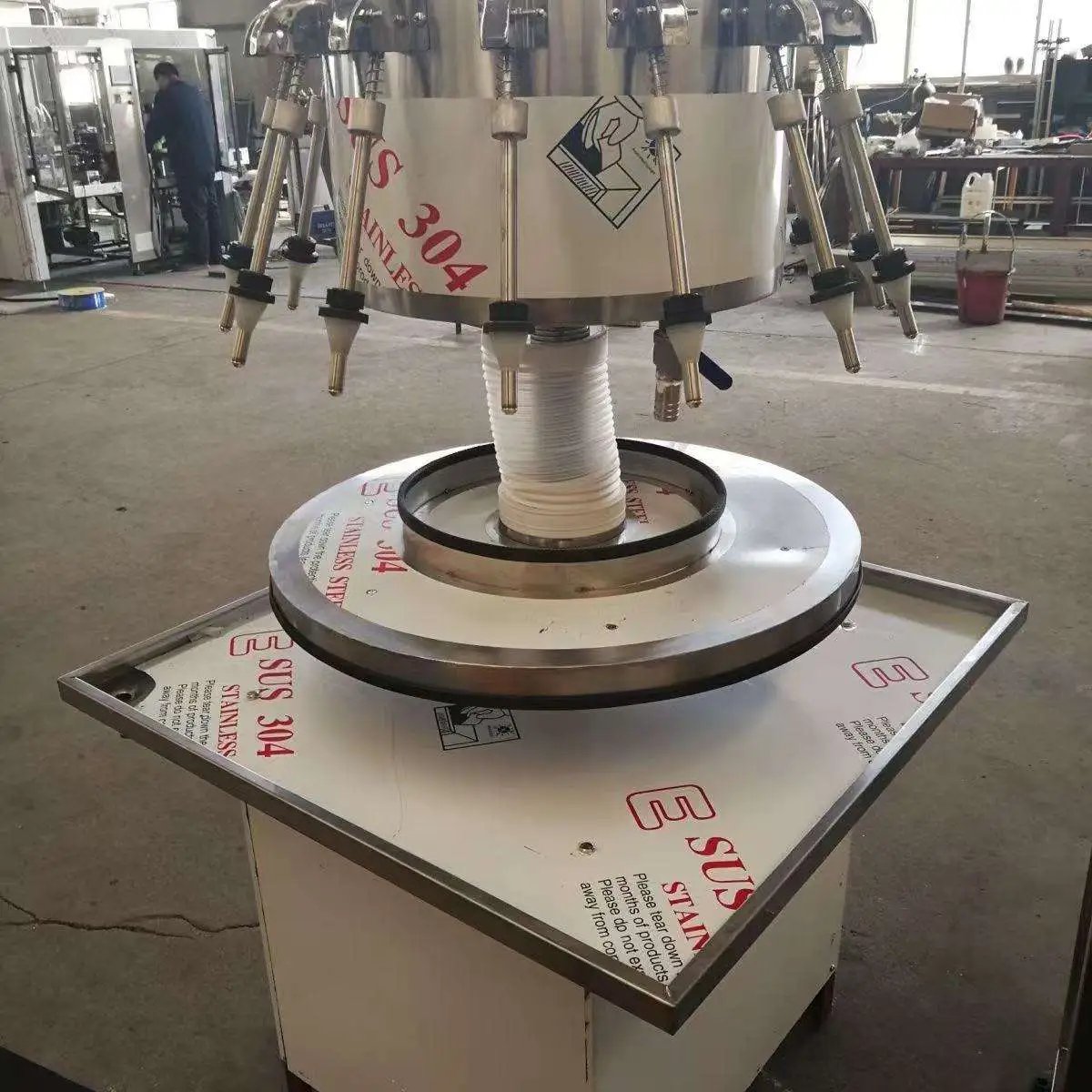

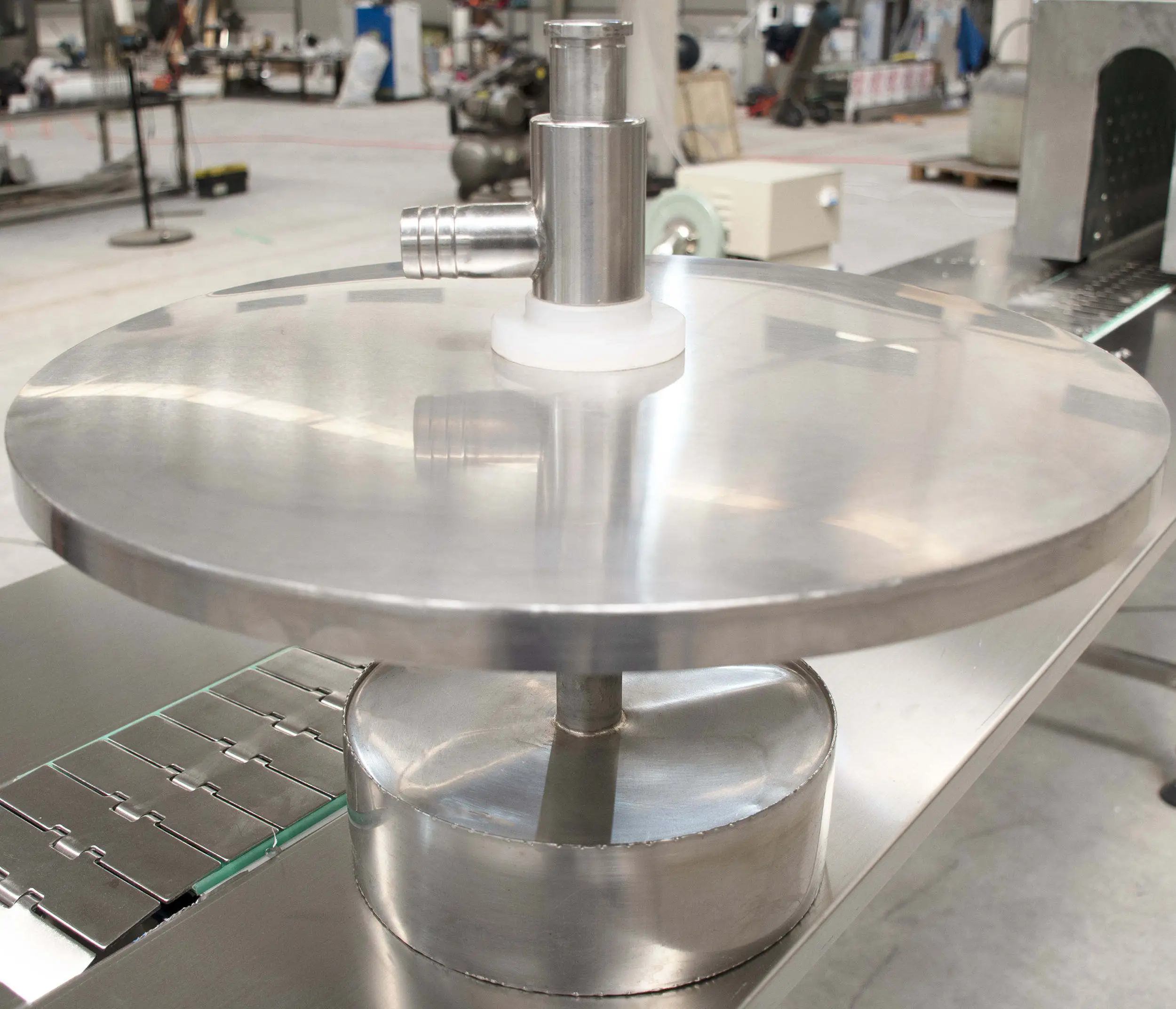

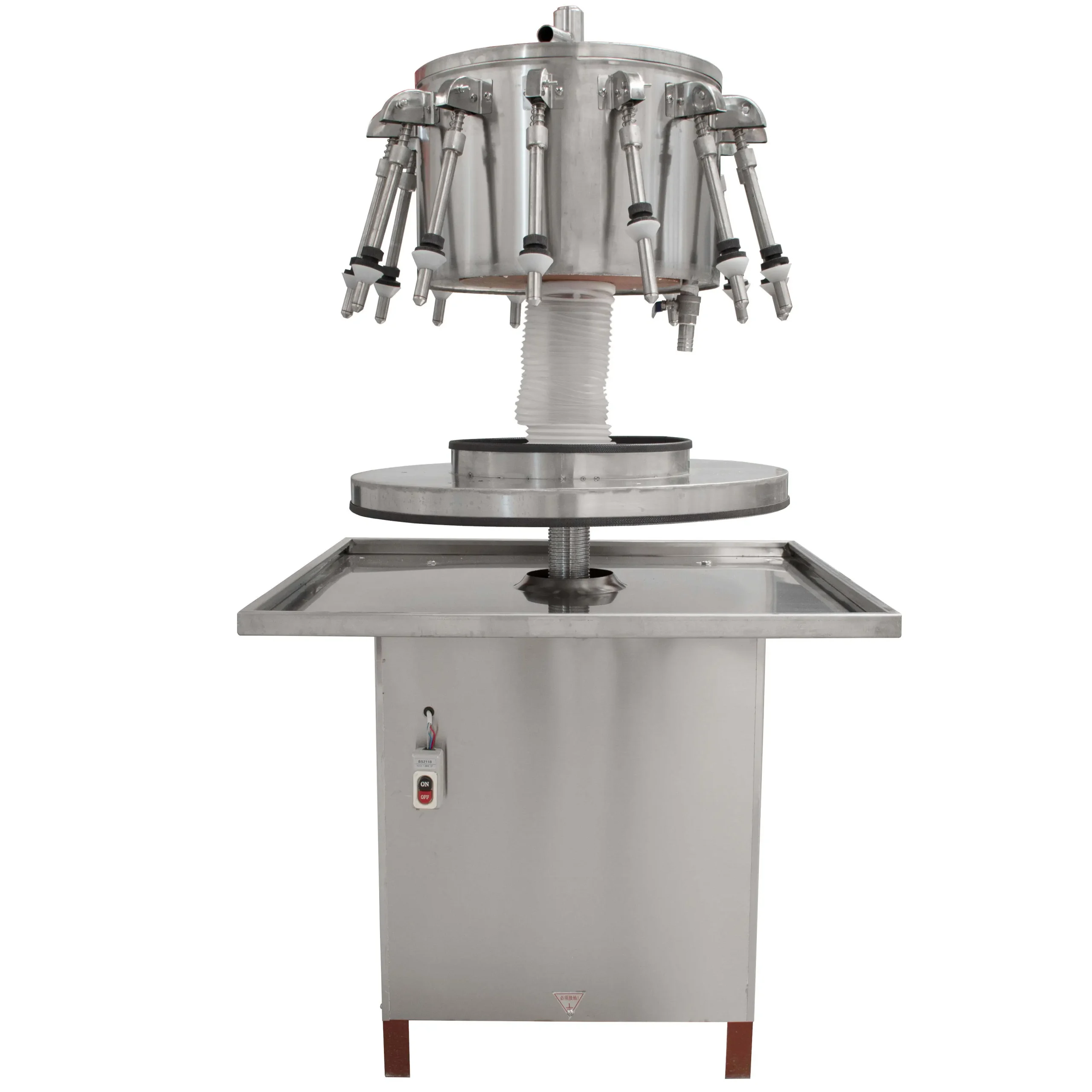

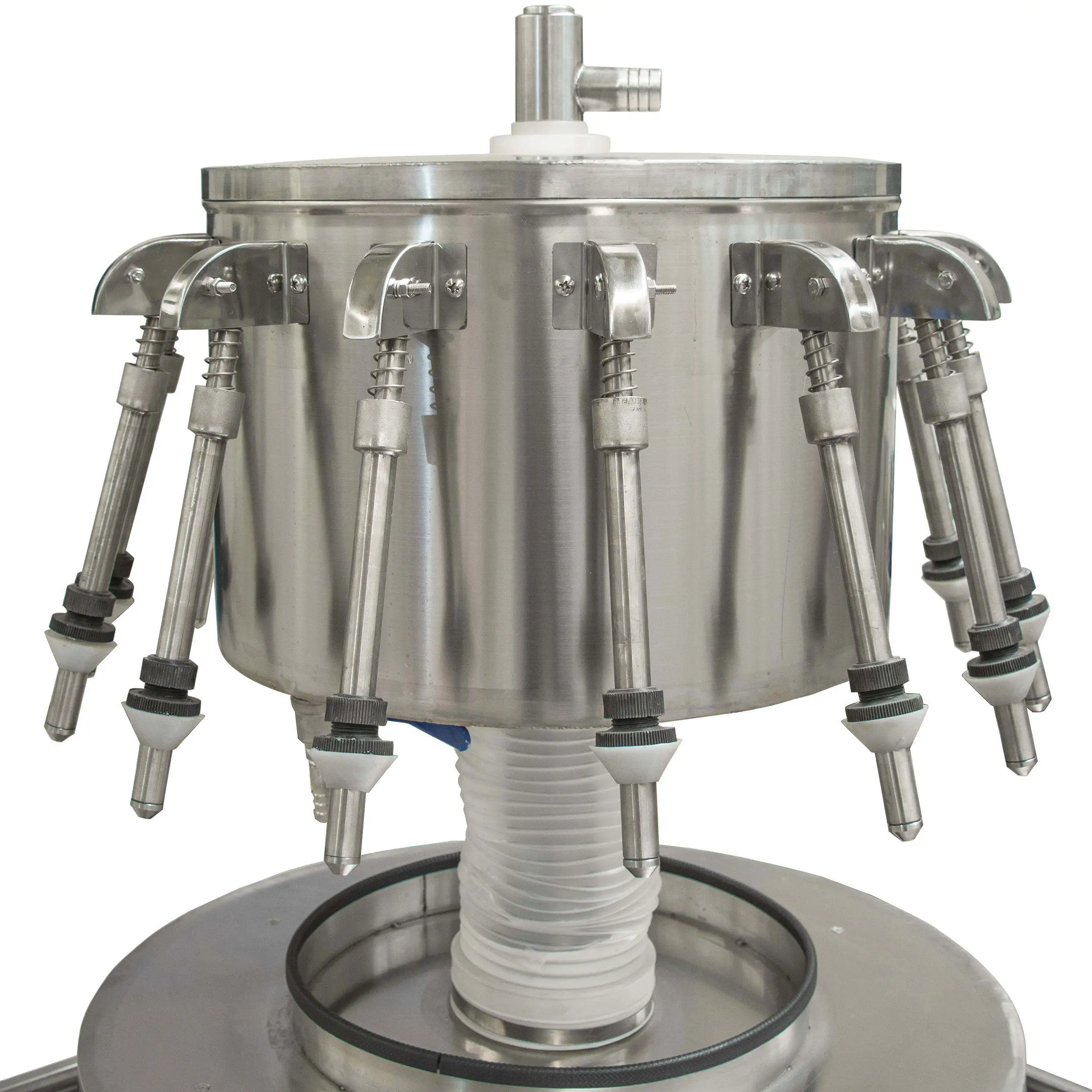

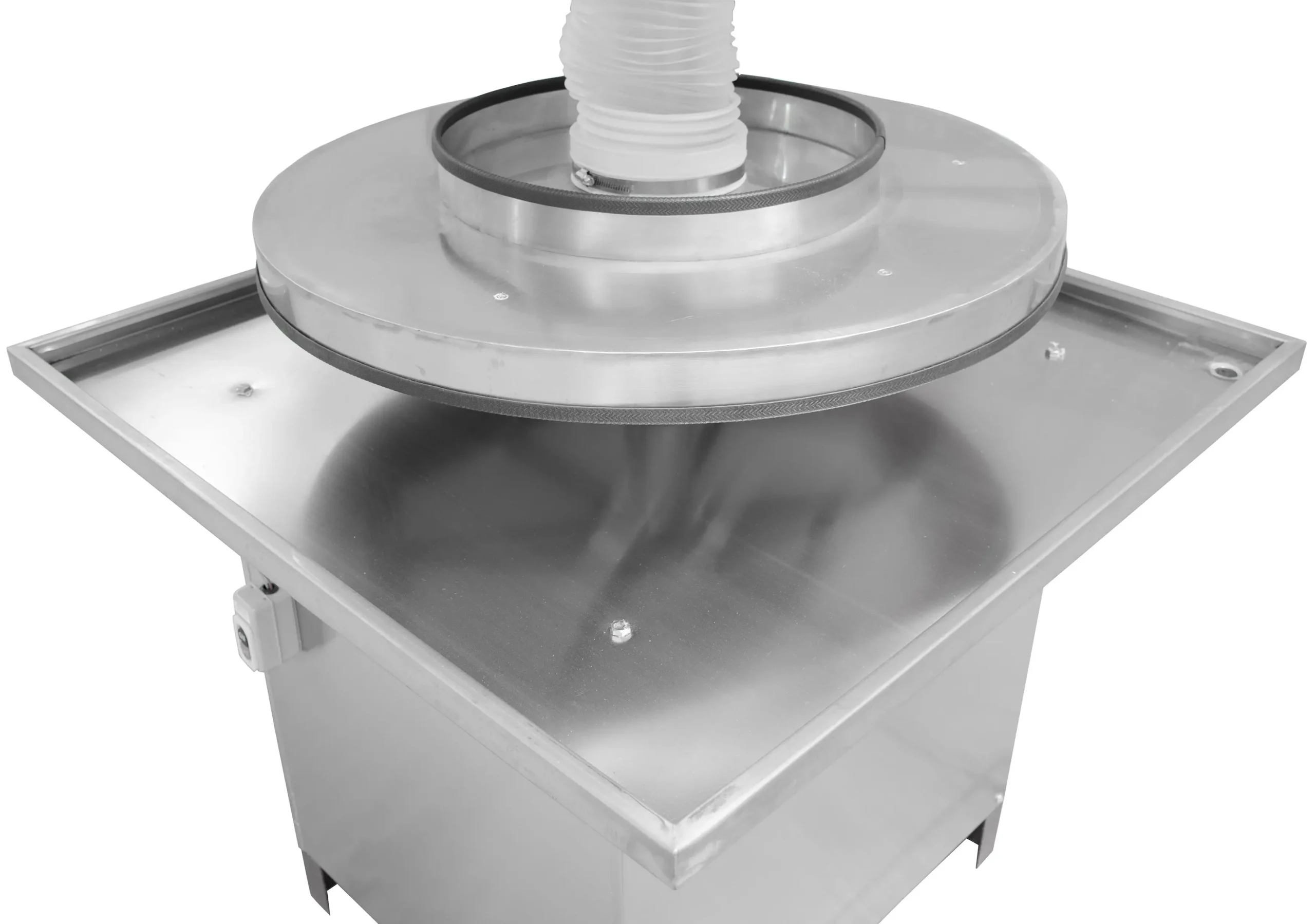

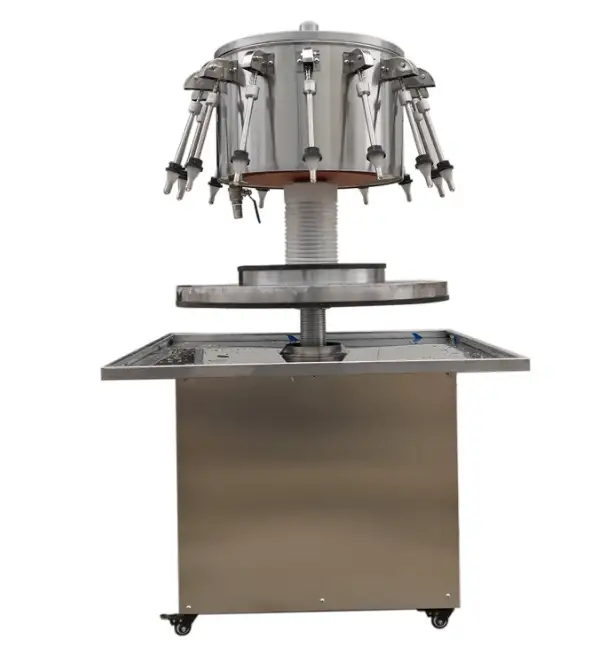

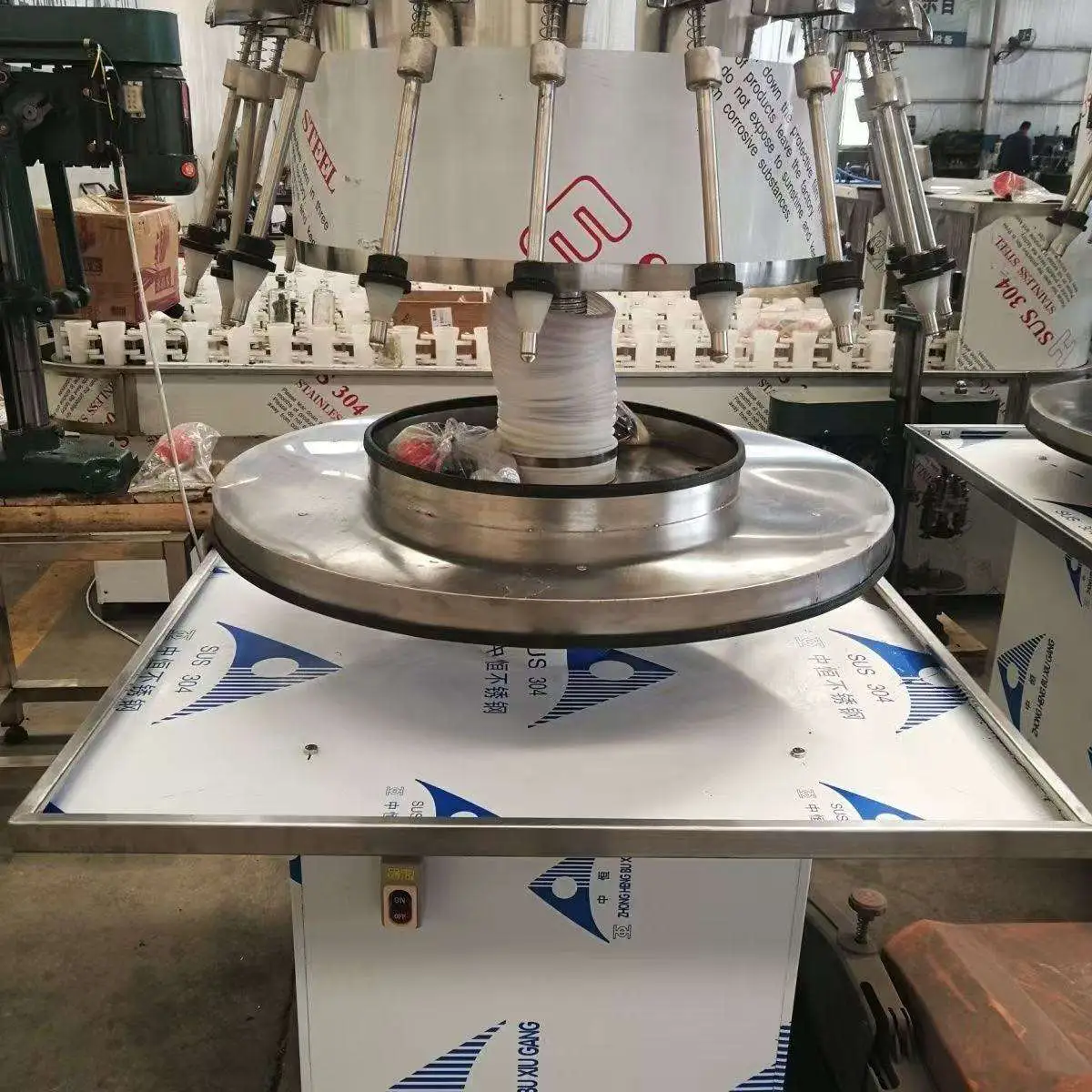

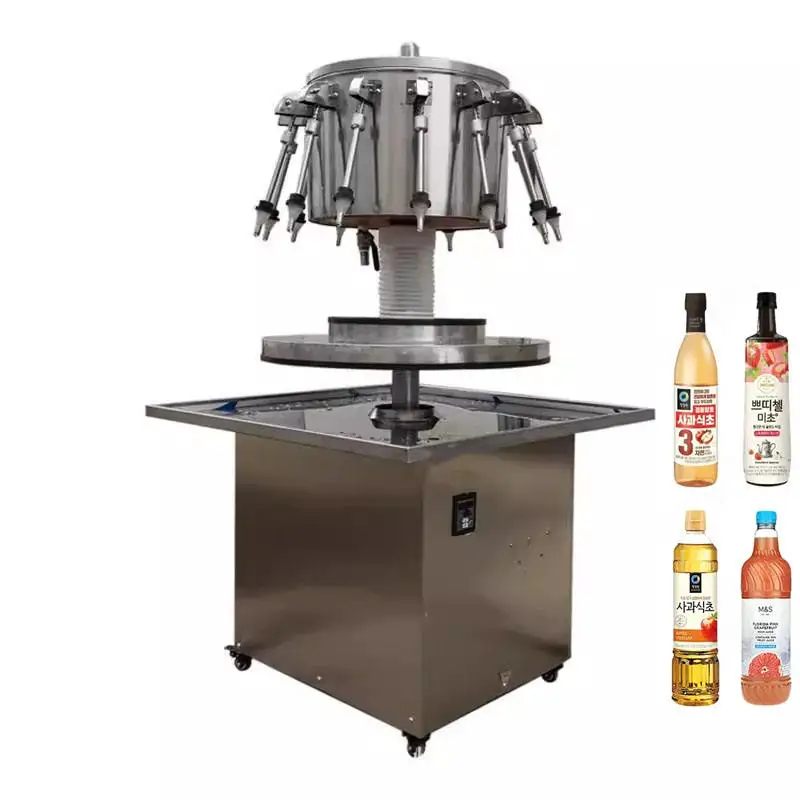

Semi-automatic 12/14/18 rotary siphon liquid quantitative gravity filling machine

Informasi

The Semi-Automatic Rotary Siphon Gravity Filling Machine is a high-performance filling system designed for bottling low-viscosity, non-foaming liquids like wine, vodka, whiskey, vinegar, edible oils, beverages, fruit juices, mineral water, and soy sauce. Made from food-grade SUS304 stainless steel, this machine is also available with SS316 for added durability and corrosion resistance, making it perfect for industries requiring hygienic standards, such as food and beverage production.

This rotary filling machine utilizes a siphon gravity system, a time-tested principle that allows for precise and consistent liquid filling. The siphon system provides low energy consumption, minimal noise, and uniform liquid levels inside each bottle, offering a clean and professional presentation. It ensures the liquid flows gently along the bottle’s inner walls, reducing the risk of foaming and overflow, which is crucial for maintaining product quality and visual appeal.

The machine can be fitted with 12, 14, 16, or 18 filling nozzles, allowing for a production capacity of 1000-1500 bottles per hour. It is suitable for various bottle types, including glass, PET, and other plastic bottles with specific hardness. The bottle and cap sizes are adjustable, and the system can accommodate bottle heights between 100-320mm and cap diameters ranging from 55mm to 100mm. Custom configurations are available based on customer requirements, ensuring that the machine is adaptable to different production environments.

The adjustable filling height makes it versatile for handling bottles of different sizes, while the movable filling nozzles ensure precise control over liquid levels. This ensures that all bottles are filled to the desired level, maintaining consistency across your entire product line. The machine’s easy integration with other equipment such as bottle washers, capping machines, labeling machines, and carton sealers, allows for seamless operation as part of a fully automated production line.

The semi-automatic operation of this machine provides ease of use, reducing the labor required for filling tasks while maintaining high output and accuracy. Its modular design ensures that the machine is easy to maintain, clean, and service, offering a long-lasting solution for small to medium-sized production facilities.

Ideal for a Range of Industries.

This machine is highly effective in industries such as beverages, food production, pharmaceuticals, and cosmetics, where filling large quantities of liquid products in a consistent, high-quality manner is essential. The flexible design and advanced technology ensure that it meets a wide range of bottling needs, from small batch to high-volume production.
