Commercial simple small automatic desktop quantitative liquid paste filling machine

Name: Commercial simple small automatic desktop quantitative liquid paste filling machine - GQ Agri
SKU: GQGX-500

Fungua uwezo kamili wa shamba lako kwa mashine ya kutegemewa ya GQ-Agri ya kuchapa mafuta. Vifaa vyetu vya bei nafuu na vya kudumu ni vyema kwa wakulima wadogo na wakulima wa jamii. Inaweza kukusaidia kuchimba mafuta ya hali ya juu kutoka kwa mbegu na karanga mbalimbali ili kusaidia ukuaji wa uchumi na maendeleo vijijini.

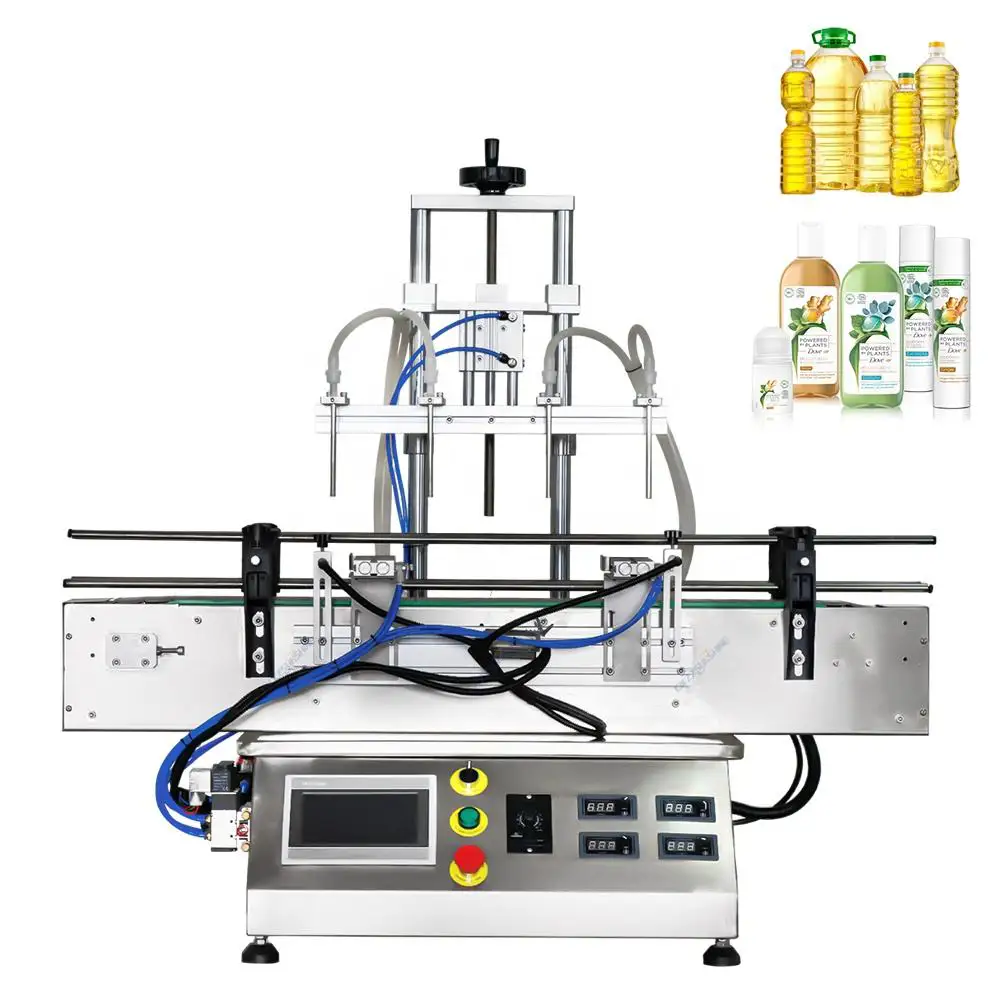

Commercial simple small automatic desktop quantitative liquid paste filling machine No hopper

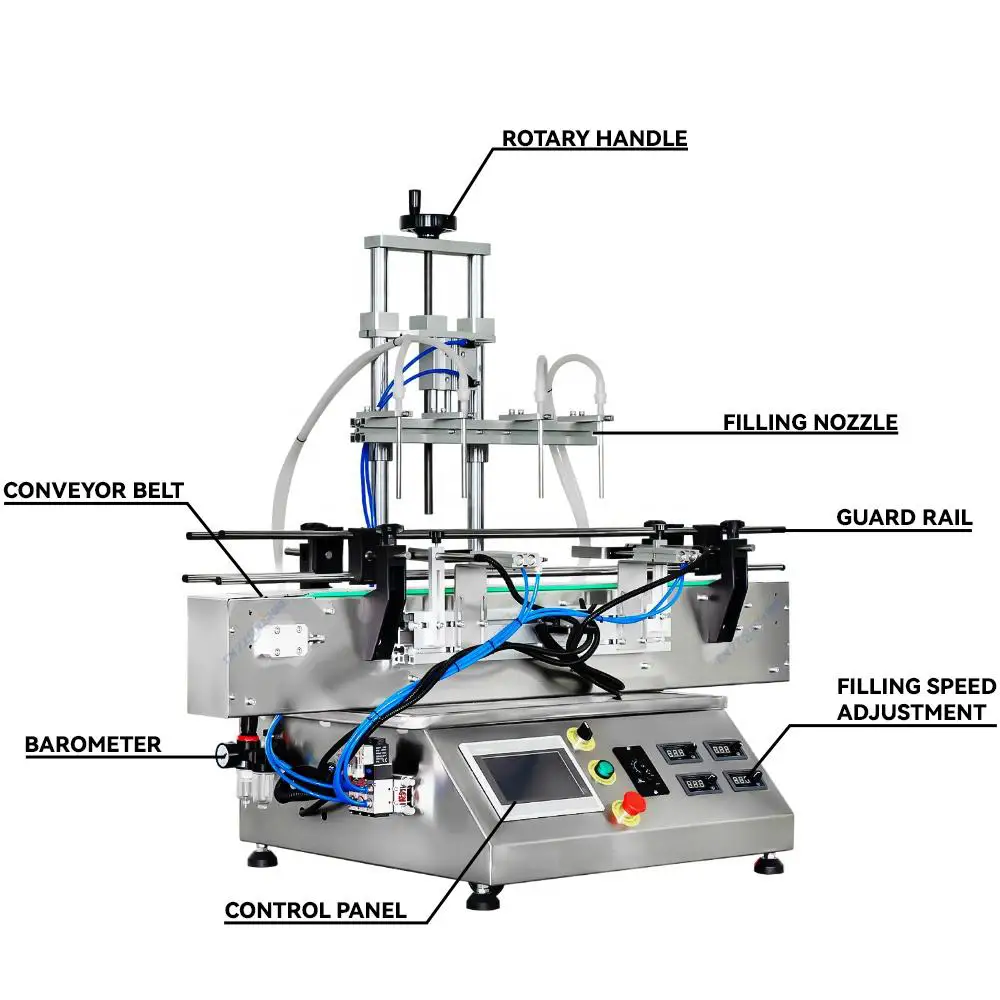

Commercial simple small automatic desktop quantitative liquid paste filling machine 3 No hopper

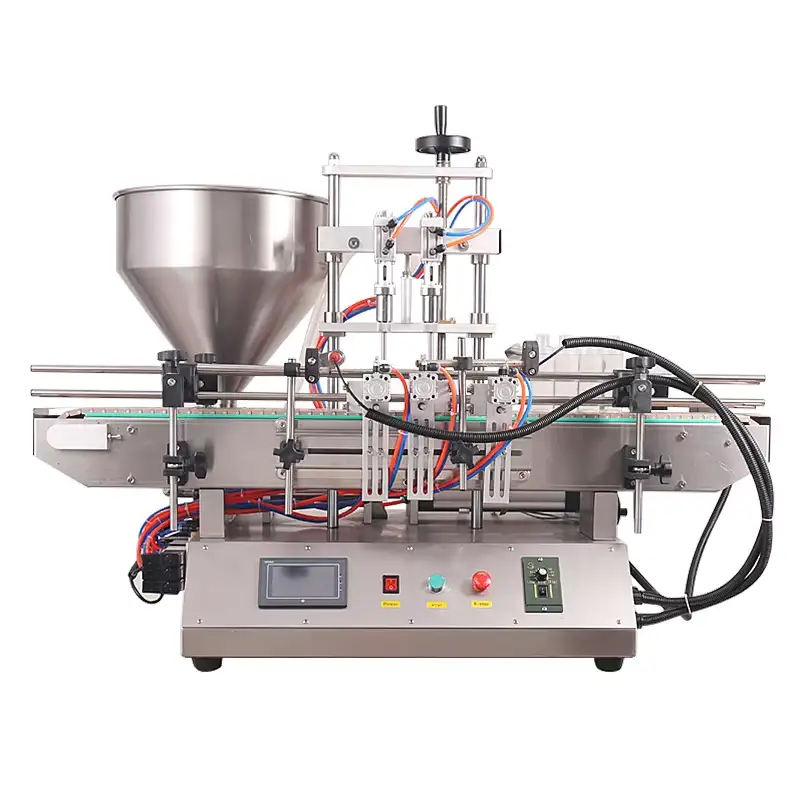

Dual-head Commercial simple small automatic desktop quantitative liquid paste filling machine 6 With hopper

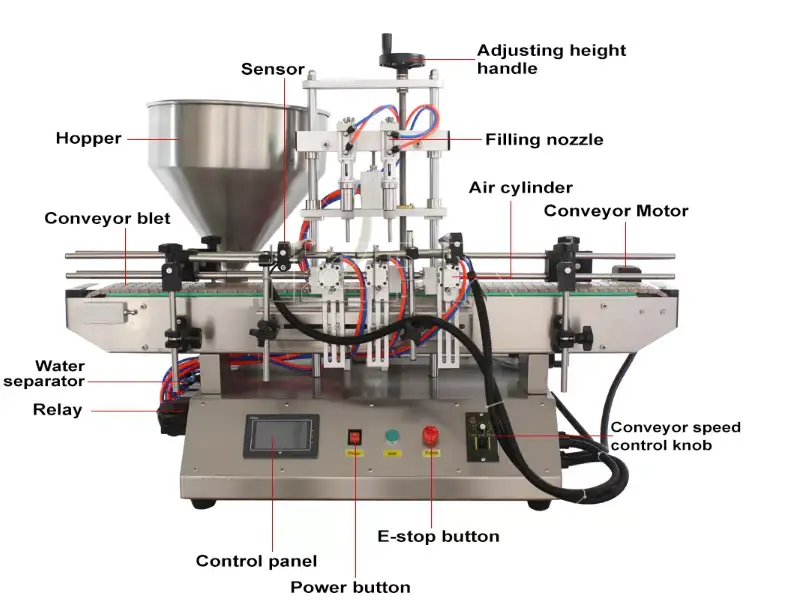

Dual-head Commercial simple small automatic desktop quantitative liquid paste filling machine 2 With hopper

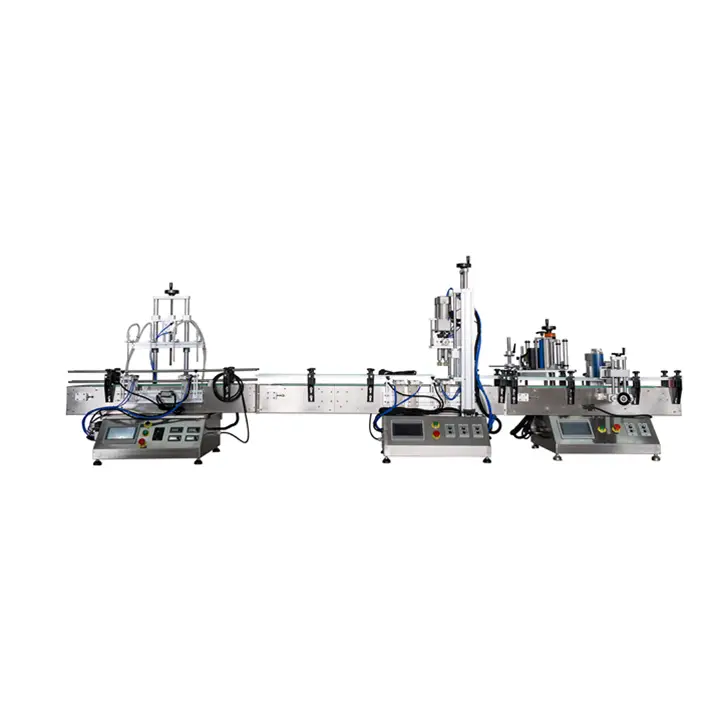

Commercial simple small automatic tabletop quantitative liquid paste filling machine + capping machine + labeling machine 3

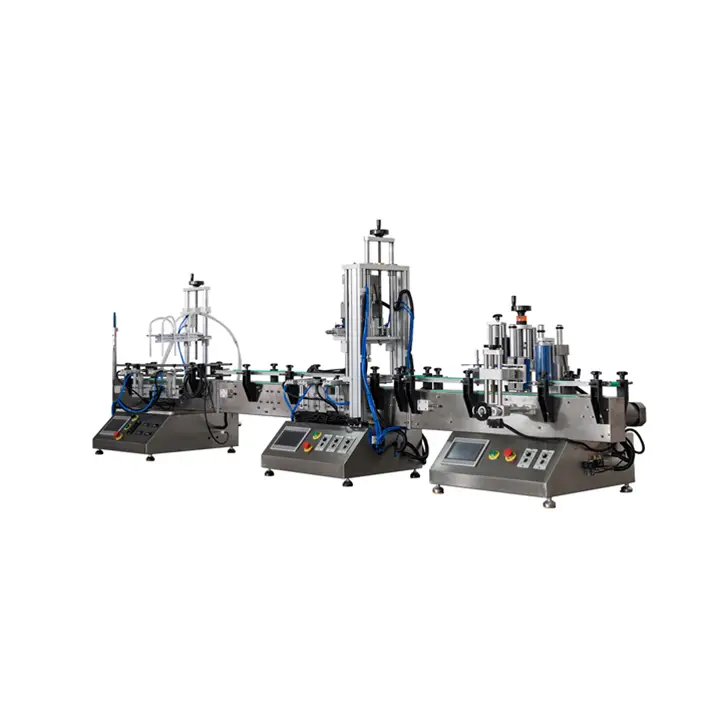

Commercial simple small automatic tabletop quantitative liquid paste filling machine + capping machine + labeling machine 2

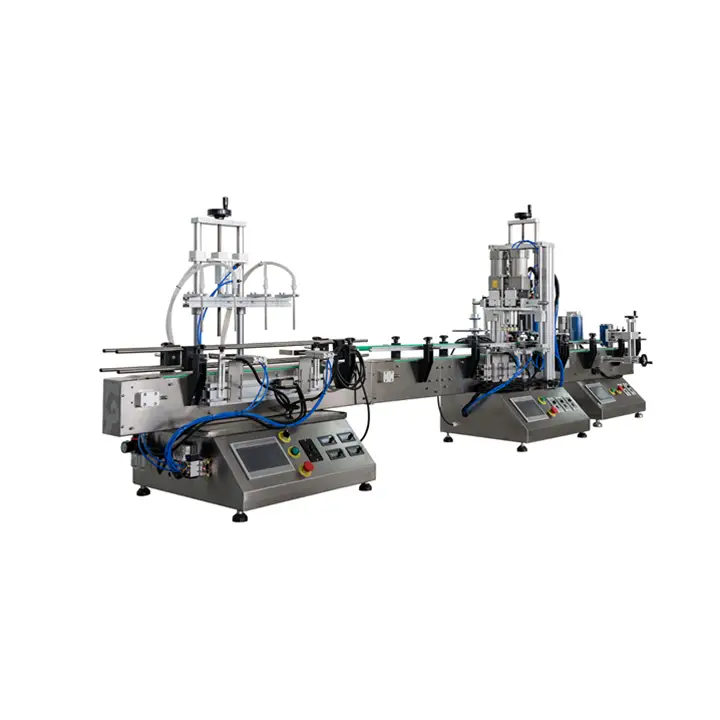

Commercial simple small automatic desktop quantitative liquid paste filling machine - Picha 7

Wide Application Across Industries:
Handles liquids and pastes such as edible oil, essential oils, creams, sanitizers, and sauces for food, cosmetic, and chemical production.
Precision Filling with Flexible Options:
Equipped with a piston dosing control system with an accuracy of ±1%. Available in a two-head filling model (with a 30L hopper) or a four-head filling model (without a hopper, but with an optional magnetic pump).
Food-Grade Safety & Durable Structure:
All contact parts made of 304 stainless steel, CE certified, easy to clean, detachable filling heads, ensuring hygiene and long service life.
User-Friendly & Efficient Operation:
Touchscreen control, strong motor with 3200ml/min flow per nozzle, easy maintenance design, supports customization based on bottles and volumes.
Full automation:
The filling machine can be combined with a capping machine and a labeling machine to form a complete set of equipment according to customer needs. This saves labor and allows for efficient filling and packaging.

SKU GQGX-500 Kategoria Filling Machine Lebo Filling Line Equipment, Gear Pump Filling Machine, Piston filling machine

Utangulizi

The Commercial Small Automatic Desktop Quantitative Liquid & Paste Filling Machine is a versatile solution designed to meet the diverse production needs of small and medium-scale businesses. Whether you are filling essential oils, cosmetic creams, hand sanitizers, sauces, or edible oils, this machine provides a reliable, accurate, and hygienic system to ensure smooth operation.

Engineered with advanced pneumatic and piston-based technology, it delivers precise filling results with an accuracy of ≤±1%. Its stainless steel structure ensures both food safety and durability, while the smart control system enables easy operation and minimal maintenance. Certified with CE standards, this machine guarantees compliance with international safety regulations, making it a trusted option for global buyers.

Machine Configurations: Dual Options for Different Needs.

This series of filling machines comes in two models to suit different production requirements:

Dual-head version with 30L hopper – Ideal for small to medium filling volumes, offering stable performance and convenient cleaning.
Four-head version with optional magnetic pump – Designed for higher output needs, providing faster filling cycles and greater adaptability for liquid products.

Both versions feature adjustable filling volumes, customizable according to bottle size or product type, ensuring maximum flexibility for manufacturers.

Structural Design and Materials.

Built with 304 food-grade stainless steel, all material-contacting parts are corrosion-resistant and safe for use in food, cosmetic, and pharmaceutical applications. The detachable nozzle design allows users to easily switch between different products without contamination risk.
The machine integrates a piston dosing system combined with pneumatic control to deliver consistent and repeatable filling accuracy. Additionally, its compact desktop design saves space while maintaining industrial-grade efficiency.

Key Features and Benefits.

Customizable Filling Volumes: Adjustable according to bottle sample or customer requirements.
High Filling Precision: Piston quantitative system ensures accuracy of ≤±1%.
User-Friendly Control: Clear touchscreen panel simplifies adjustments and monitoring.
Easy Cleaning & Maintenance: No need to open the machine body, just remove and rinse filling heads.
Stronger Performance: Each nozzle supports up to 3200ml/min flow, over twice the rate of similar products (1400ml/min).
Flexible Applications: Interval filling mode makes it suitable for both small bottles and larger containers.

Working Principle.

The filling process is based on a piston-driven dosing system. Liquid or paste is drawn into the piston chamber and then discharged into containers with controlled pressure, ensuring high precision. For the magnetic pump version, flow is regulated electronically, providing greater accuracy and consistency, especially for low-viscosity liquids.

This principle not only ensures repeatable filling accuracy but also allows operators to adjust speed and volume according to production requirements.

How to Use.

Set the filling volume and speed using the touchscreen control panel.
Place bottles or containers under the filling nozzles.
The machine automatically fills with high accuracy, minimizing waste and spillage.
After production, simply remove the nozzles and hopper for cleaning before switching products.

Applications.

This desktop filling machine is widely used in:

Food Industry – edible oils, sauces, syrups, beverages.
Cosmetics Industry – creams, lotions, essential oils.
Chemical Industry – sanitizers, detergents, chemical solutions.
Pharmaceutical Industry – syrups, liquid medicine, supplements.

Why Choose This Filling Machine?

Compared to similar small-scale filling machines, this model offers higher speed, greater accuracy, and easier maintenance. With flexible customization, dual configurations, and CE certification, it is a reliable choice for businesses aiming to improve efficiency while maintaining product quality and hygiene standards.

Double filling head filling machine with hopper
Mfano	GQG2-500
Voltage	220V/50Hz, 110V/60Hz
Nguvu	120W
Filling Speed	10–26 bottles/min
Filling Accuracy	≤±1%
Nyenzo	Chuma cha pua
Filling Volume	50–100 ml / 100–500 ml
Bottle Diameter	25–100 mm
Bottle Height	180 mm
Uzito	200 kg
Machine Size	1200 × 900 × 680 mm
Pump Type	Piston Pump
Shinikizo la Kazi	0.6 MPa (Air compressor ≥1.5kW, 65L / ≥7.5kW, 200L)
Uwezo wa Uzalishaji	10–30 bottles/min (depending on bottle capacity and volume)
Bottle Height Range	100–200 mm

Magnetic pump filling machine with 4 filling heads
Mfano	GQG4-500
Filling Range	100–1000 ml (customizable)
Filling Heads	4
Voltage	220V, 50/60Hz
Nguvu	0.4 kW
Air Pressure	0.4–0.6 MPa
Pump Type	Piston Pump / Magnetic Pump
Working Air Pressure	0.6–0.8 MPa
Filling Accuracy	≤±1%
Filling Speed	20–30 bottles/min (depending on product volume and capacity)
Bottle Height Range	100–200 mm
Machine Size	1700 × 1160 × 850 mm

*The above specifications are for reference only. The machine is constantly being upgraded, so the parameters may differ from the actual ones. Please understand.
